Enhancing Acidic Dye Adsorption by Updated Version of UiO-66
Corresponding Author(s) : Hussein Rasool Abid
Journal of Applied Materials and Technology,
Vol. 1 No. 2 (2020): March 2020
License
Copyright (c) 2020 Naser Al Amery, Hussein Rasool Abid, Shaobin Wang, Shaomin Liu
This work is licensed under a Creative Commons Attribution 4.0 International License.
Abstract
In this study, two improved versions of UiO-66 were successfully synthesised. Modified UiO-66 and UiO-66-Ce were characterised to confirm the integrity of the structure, the stability of functional groups on the surface and the thermal stability. Activated samples were used for removal harmful anionic dye (methyl orange) (MO) from wastewater. Batch adsorption process was relied to investigate the competition between those MOFs for removing MO from aqueous solution. Based on the results, at a higher initial concentration, the maximum MO uptake was achieved by UiO-66-Ce which was better than modified-UiO-66. They adsorbed 71.5 and 62.5 mg g-1 respectively. Langmuir and Freundlich isotherms were employed to simulate the experimental data. In addition, Pseudo first order and Pseudo second order equations were used to describe the dynamic behaviour of MO through the adsorption process. The high adsorption capacities on these adsorbents can make them promised adsorbents in industrial areas.
Keywords
Full Article
Introduction
Nowadays, significant amount of wastewater with colour has been created by various industries including textile, leather, paper, printing, dye stuff, plastic and so on [1]. Based on the high impact of the quality of water by colour, the removal of dyestuff from polluted water is becoming very important issue [1]. Besides, the high visibility of dye even with a small amount is undesirable. Additionally, many dyes are toxic and even carcinogenic [1-3].
According to the stability to light and oxidation reactions, the degradability of synthetic dyes become one of the most challenges to the environmentalists [3]. It is reported that physical, chemical and biological methods have been applied for the remediation of dyes in aqueous solution [1,3,4]. One of the most feasible techniques among the proposed methods, is adsorption process due to its high efficiency, economic, and simplicity of design as well as operation [3,4].
Methyl orange (MO) is classified as a common acidic (anionic) dyes, which has been broadly used in many industries including textile, printing, paper, food and pharmaceutical industries, wood, silk, and research laboratories. The toxicity of MO has drawn the attention of researcher to the importance of the removal of this synthetic dye [2,4]. According to the above-mentioned explanation, MO was chosen to be examined in present study as a typical acidic dye. For the purpose of removal this kind of cationic dye, many solid materials were used as adsorbents to decolour the contaminated wastewater like activated carbon [5,6], graphene oxide [7], Layered double Hydroxide (LDH) [8], and zeolites [9].
Metal–organic frameworks (MOFs) (hybrid materials) are class of extended structure crystalline solid porous materials which have been used widely in many applications [10]. The characteristics of MOFs including structural and functional tunability have led to explosive growth in their applications via extensive research during the last two decades [11]. Therefore, they have been used in several applications like gas and vapour storage, molecular separations, chemical catalysis, chemical sensing, ion exchange, drug delivery and hazardous materials [12,13]. They are good alternative adsorbents for removal of MO from aqueous solutions [14].
Because of lack of studies in MO removal using MOFs, the present study used the modified UiO-66 samples as structural sable porous materials to eliminate MO from wastewater. These samples of modified UiO-66 were well characterised. In addition, adsorption of anionic dye (MO) were achieved onto two kinds of UiO-66 named UiO66-Ce, and modified UiO-66. The results proved high adsorption affinity of MO toward these modified UiO-66 adsorbents. The experimental data were fitted by kinetic and equilibrium adsorption models to investigate the type of the adsorption process and the energetic characteristics of the adsorbent’s surface respectively. That can suggest an opportunity of using them as alternative sorbents instead of the conventional adsorbents for removal ionic dyes from wastewater.
Materials and Methods
Synthesis and activation
All chemicals were supplied by Sigma Aldrich-Australia without further purifications. UiO-66-Ce was solvothermally synthesised under autogenous pressure. An exact amount of terephthalic acid (0.3771 g, 2.27 mmol; Sigma–Aldrich, 98%) was mixed with 31.387 mL of DMF (Sigma–Aldrich, 99%). Then the mixture was stirred for 10 min till a clear solution was formed. After that ZrCl4 (0.529 g, 2.27 mmol; Sigma–Aldrich, 99%) was added into the solution and stirred for 5 min. Then CeN3O9.6H2O (0.1971 g, 0.000454 mmol; Sigma–Aldrich, 99%) was added to the reactants and stirred for 15 min. The mixture of reactants was loaded into a Teflon-lined autoclave, sealed and placed in a preheated oven at 393 K for 24 hr. White powder of UiO-66-Ce was collected by centrifugation and washed with a DMF at least three times. Then the product was dried and immersed in absolute methanol (100%, Sigma Aldrich) for 5 d. eventually, it was filtered, dried and heated under vacuum at 473 K overnight prior to use for adsorption.
UiO66-NH4 was synthesised solvothermally according to a reported procedure by a single-solvent method [15]. A solution of 32 mL of DMF was divided equally into two batches. In the first batch, 2.27 mmol of terephthalic acid was added and mixed for 15 min and then NH4OH (0.4 mL, 2 M) was added dropwise to this mixture. In the second batch, (0.53 g, 2.27 mmol) of ZrCl4 was mixed with the solvent for approximately 30 min. After that, both batch solutions were mixed in a single pot for approximately 20 min. Finally, the resulting solution was placed inside a 45 mL Parr PTFE-lined stainless-steel vessel (Parr Instrument Company, USA) and placed in an oven at 393 K for 24 hr. After cooling to room temperature, the centrifugation was used to separate white gel-like material, which was dried in an oven at 353 K for 24 hr. For activation of modified-UIO-66, a solvent exchange method by chloroform was used by mixing 0.1 g of a synthesised material in 50 mL of chloroform for 30 min, and then keeping soaked for 5 d. Then, the product was filtered by vacuum filtration and dried in the oven at 373 K for 2 hr. The final product was heated under vacuum at 473 K for 2 d.
Characterization
Thermogravimetric analysis of UiO-66-Ce, UiO66-Ca, and UiO66-NH4 were checked by a thermogravimetric analysis (TGA) instrument (TGA/DSC1 STARe system-METTLER TOLEDO). The samples were loaded into an alumina pan and heated to 1173 K at a rate of 5 K min-1. The air flow rate was maintained at 10 mL min-1.
FTIR spectra (Spectrum 100-FT-IR Spectrometer, Perkin-Elmer) were obtained to check the stability of the functional groups on the organic ligands. The spectrums were scanned from 650 to 4000 cm−1 with a resolution of 4 cm−1 by using an attenuated total reflectance (ATR) technique. X-ray powder diffraction patterns were obtained with an X-ray diffractometer (D8 Advance-Bruker aXS) using Cu Kα radiation (λ = 1.5406 Å). Quantachrome instrument (Autosorb-1) was used to determine the N2 adsorption/ desorption isotherm, BET surface area, pore size and pore volume of activated samples. The samples were firstly evacuated at 473 K for 24 hr prior to secondly use in the analysis at 77 K. Elemental analysis was done by The NexION® 300/350 - ICP-MS (PerkinElmer) and Optima 8300- ICP-OES (PerkinElmer).
Adsorption process
An aqueous stock solution of MO (1000 ppm) was prepared by dissolving MO (C14H14N3NaO3S, MW: 327.34, Sigma–Aldrich) in deionized water. Aqueous solutions with different concentration of MO were prepared by successive dilution of the stock solution with water. Spectrophotometer (UV spectrophotometer-Jasco V-670) was used to determine the actual absorbance at the wavelength of 464 nm for each standard concentration. Then the calibration curve was obtained for the concentrations ranged from 5–100 ppm.
Prior to use in adsorption study, the adsorbents were dried overnight under vacuum at 373 K. The several glass containers were cleaned, dried and filled up to 20 mL with MO of different concentrations ranged from 10 to 75 ppm. After that, the exact amount of an adsorbent (20 mg) was mixed with MO in the containers by magnetic stirrer and maintained from 5 min to 24 hr at 298 K. The samples for analysis were collected by syringe filter at different sampling interval. A supernatant was used in UV spectrometer for analysis.
The uptake of a modified UiO-66 sample at any time and equilibrium time is expressed as shown in Equation (1) and (2), accordingly. However, removal efficiency of MO is calculated based on Equation (3) [16].
\begin{equation} q_{t}=\left ( C_{o} - C_{t}\right )\frac{V}{m} \tag{1} \end{equation}
\begin{equation} q_{e}=\left ( C_{o} - C_{e}\right )\frac{V}{m} \tag{2} \end{equation}
\begin{equation} R \%=\frac{\left ( C_{o} - C_{t}\right )}{C_{o}}\times 100 \tag{3} \end{equation}
Where: t: Amount of MB adsorbed in a specific weight of modified UiO-66 at any time t (mg. g-1), qe: Amount of MB adsorbed in a specific weight of modified UiO-66 at (mg. g-1), 0: Initial concentrations of MB solution at time zero (mg L-1), Ct-1Ce: Concentration of MB solution at equilibrium (mg L-1), V: volume of MB solution in the adsorption batch process (L), R%: efficiency MB, m: The specific weight of the modified UiO-66 in (g) used in the adsorption batch process.
Experimental adsorption capacities were fitted by two kinetic models including pseudo-first order and pseudo-second models to determine the adsorption rate and identify the type of MO adsorption [17-20]. Moreover, the experimental data were also fitted by the Langmuir and Freundlich adsorption isotherms to describe the adsorption equilibrium isotherm of MO on the modified UiO-66 samples [17-19,21].
Results and Discussion
Activation process by chloroform exchange process was very active to remove all unwanted chemicals from the pores. Also, It removed the whole content of the second metal (Ca+2) which was expected to be weakly coordinated on the structure of UiO-66 due to their high incompatibility with Zr+4. Therefore, trace of Ce+2 has been investigated by the elemental analysis. Figure 1 (a) shows the PXRD pattern for UiO-66 samples, it was demonstrated that the structures were the same, similar to that in previous reported articles [15,22]. In addition, FTIR spectra of the samples in this study was shown in Figure 1 (b), all functional groups which were seen on the surface of UiO-66 in previous studies [23] were observed and maintained on the surface of UiO-66-Ca, UiO-66-Ce and UiO-NH4. Formation of the crystalline UiO-66 was confirmed by presenting the peaks at the band of 1550–1630 cm−1 which referred to coordinated carboxylates with metal centers. On the other hand, the stretching variation band of CO bond in free carboxylic acid throughout the region of 1640–1670 cm−1 were mostly disappeared on all samples that can be a good indication for a good activation procedure used for the removing non-reacted carboxylic acid and free solvent from the pores. Furthermore, the thermal stability of those samples was investigated as demonstrated in Figure 1 (c). All samples have the same thermal stability as that was mentioned reported articles [15,24]. They can stable up to about 750K.

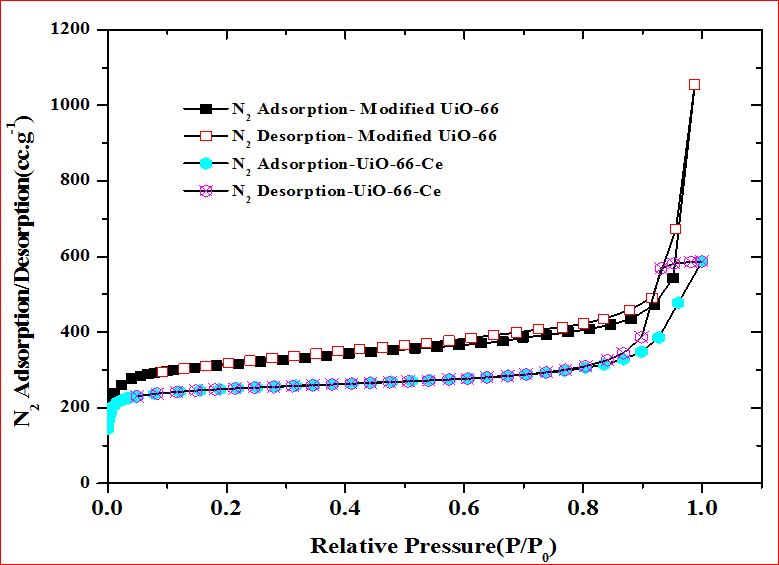

Figure 2 shows the N2 adsorption/ desorption isotherms on the modified UiO-66 samples confirming their porosity. It seems these samples have pores in the long size range extending from micropore to macropore. Primary fillings in narrow micropores were achieved at low relative pressure up to 0.01 as shown in Figure 2. While the secondary fillings in wider micropore were filled on the long range of relative pressure up to 0.9 therefore this behaviour was represented by relatively horizontal line. However, hysteresis of desorption isotherm over adsorption isotherm referred to the presence of neck-bottle mesopores. In addition, rapid increasing of adsorption rate at higher pressure close to 0.999 can be a good evidence for presence of macropores. Table 1 displays the textural properties of the modified UIO-66 samples. Specific surface area (BET) was reduced in the structure of UiO-66-Ca and UiO-66-Ce, tt was 1064 and 911.85 2-1respectively. Whereas, the specific surface area of UiO-66-NH4 was approximately the same as that was published for UiO-66. It was 1226 m2. g-1. The pore volume and pore size were enhanced in all the samples, the largest pore volume and pore size were exposed by UiO-66-NH4 of 1. 65 cc.g-1 and 5.4 nm correspondingly. While they were 1.32 cc. g-1 and 4.95 nm in UiO-66-Ca; and 0.91 cc. g-1 and 4.00 nm in UiO-66-Ce. Consequently, the external surface area 331, 292.50 and 224.45 m2. g-1 on the UiO-66-NH4, UiO-66-Ca and UiO-66-Ce respectively.
Material | BET (m2. g-1) | External surface area (m2. g-1) | Average pore volume (cm3. g-1) | Average pore size (nm) |
Modified UiO-66 | 1226 | 331 | 1.65 | 5.4 |
UiO-66-Ce | 911.85 | 224.45 | 0.91 | 4.0 |
Kinetics adsorption models
Kinetics adsorption studies is crucial part due to the giving a good indication about one of the criteria for efficiency of adsorbent which is the rate of adsorption as well as give clear picture about the mechanism of adsorption. The linear relationship of pseudo first order model can be expressed in eq. 4 [25]:
\begin{equation} ln\left ( q_{e}-q_{t} \right )=ln\left ( q_{e} \right )-k_{1}t \tag{4} \end{equation}
While The linear form of pseudo second order model is given in eq. 5 [18]:
\begin{equation} q_{e}=k_{F}C_{e}^{\frac{1}{n}} \tag{5} \end{equation}
Where: qe: amount adsorbed at equilibrium (mg. g-1). qt: amount adsorbed at time t (mg. g-1). t: contact time (min). k1: First order kinetic constant (min-1) k2: Second order kinetic constant (g. mg-1 min-1).
ln (qe−qt) versus t plot can lead to a straight line from which the value of k1 and qe can be found from the slope and intercept value, accordingly [26-28]. In the same way, t/qt versus t can be plotted to give linear relationship, from which qe and k2 can be computed [29-31].
To compare the adsorption kinetics precisely, the experimental adsorbed amount changed with time are fitted with pseudo-first-order and pseudo-second-order kinetic models [17-19,32-34] as shown in Figure 3. Table 2 and Table 3 are tabulated the obtained parameter of the rate constant studies for various initial concentrations of MO by fitting the experimental data to the pseudo-first-order and second-order equations. The results of the correlation coefficient (R2) of the pseudo-first-order and pseudo-second-order adsorption models were revealed that R2 values of pseudo-second-order equation has higher values (greater than 0.99) compared to R2 values of pseudo-first-order equation, and its calculated equilibrium adsorption capacity (qe,cal) is consistent with experimental one (qe). Consequently, the pseudo-second-order adsorption mechanism is predominant for the adsorption of dye. Therefore, the overall rate of MO uptake on modified UiO-66 samples seems to be controlled by the chemisorption processes [35] including valence forces through sharing or exchange of electrons [20,36]. That mechanism had been detected in the removal of MB and MO by adsorption onto an activated carbon [37]. It is also notable that in general the rate constant of the pseudo-second-order model (k2) is decreases with increases of the initial MO concentration for the samples in this study. It appears from Table 3 that the rate constant (k2) increased on the adsorbents when initial concentration was set on 30 mg.L-1 while it decreased at lower and higher concentration. That can be interpreted according to abundance of negative charges of MO which increases with increasing an initial concentration. Hence, the mobility of MO molecules may be affected by the initial concentration as it is first can be increased with increasing the concentration up to the overcharge limit then was decreased with raising the initial concentration further up.
Absorbent | 10 ppm | 17.5 ppm | 30 ppm | 75 ppm | ||||
k1 | R2 | k1 | R2 | k1 | R2 | k1 | R2 | |
Modified UiO-66 | 0.37 | 0.98 | 0.17 | 0.97 | 0.15 | 0.93 | 0,11 | 0.97 |
UiO-66-Ce | 0.38 | 0.95 | 0.08 | 0.97 | 0.11 | 0.97 | 0.06 | 0.96 |
Adsorbent | 10 ppm | 17.5 ppm | 30 ppm | 75 ppm | ||||
k2 | R2 | k2 | R2 | k2 | R2 | k2 | R2 | |
Modified UiO-66 | 0.07 | 0.99 | 0.007 | 0.99 | 0.016 | 0.99 | 0.006 | 0.99 |
UiO-66-Ce | 0.07 | 0.99 | 0.011 | 0.99 | 0.008 | 0.99 | 0.001 | 0.99 |
Figure 3 shows that most MO uptake occurred in the first 30 min of the contacting time indicating that in the beginning of the adsorption process, the diffusion rate of MO toward active sites on the adsorbents was increased and consequently the adsorption uptake of MOD was rapidly enhanced. Furthermore, with increasing the contact time, the uploading of MO was slower due to lack availability of adsorptive sites as well as the likelihood of repulsive force between the molecules of MO themselves in the bulk solution. The adsorption mechanism of MO on the modified UiO-66 samples is controlled by the external surface area and pore size because MO has a large hydrophobic molecule [38]. Herein, all modified UiO-66 had larger average pore size which can be facile access for the molecules of MO. Consequently, the interaction between MO and the organic linkers is more likely to occur by π-π stacking interactions. In addition, present of trace of Ce in the metal center of Zr enhanced its positive charge density as a result of that, the affinity of MO adsorption toward the metal center of the modified UiO-66 samples was increased.
Equilibrium adsorption models
Equilibrium status of MO on the adsorbents at constant temperature is required because it is very important to determine the isotherm data and then to design the appropriate adsorption system. Many isotherm adsorption models were established to describe sorption equilibrium isotherms. The most important isotherm adsorption models that were widely employed to fit the equilibrium data were Langmuir [39] and Freundlich [40].
Freundlich isotherm
It is commonly used to describe a heterogeneous adsorption systems by using the following empirical formula;
\begin{equation} q_{e}=k_{F}C_{e}^{\frac{1}{n}} \tag{6} \end{equation}
Equation (6) is linearised and simplified in the following form of Equation (7);
\begin{equation} ln\left ( q_{e} \right )=ln\left ( k_{F} \right )+\frac{1}{n}ln\left ( C_{e} \right ) \tag{7} \end{equation}
Where: qe: amount of dye sorbed at equilibrium per unit mass of sorbent (mg. g-1). Ce: the equilibrium concentration of dye in solution (mg. L-1) F: Freundlich equilibrium constants (mg. g-1. (L. mg-1)1/n) is an indicator of the adsorption capacity. 1/n: an empirical parameter refers to the adsorption intensity while n measures the deviation from linearity of the adsorption. The favourability of the adsorption systems may be tested by determining the reciprocal of the magnitude of the exponent n value. When the value of n ranged from 1 to 10, it can be concluded that the normal adsorption process is favourable.
This behaviour is most common physical adsorption because of a decrease in adsorbate- adsorbent interactions with increasing the surface density [41].
From the straight-line plot of ln (qe) vs ln (Ce), the values of n and kF can be simply found from the slop and intercept, accordingly. The values of these parameters were significantly affected by the type of adsorbate and adsorbent. Therefore, they are obviously changed with using UiO-66-NH4, UiO-66-Ce, and UiO-66-Ca as displayed in Table 4.
Adsorbent | Adsorption isotherm model | Parameters | R2 |
UiO-66-Ce | Langmuir | qm = 208 mg. g-1 | 0.964 |
KL= 0.256 L. mg-1 | |||
Freundlich | KF= 40.8 (mg. g-1) (L. mg) 0.313 | 0.991 | |
n= 1.18 g. L-1 | |||
Modified UiO-66 | Langmuir | qm= 67.56 mg. g-1 | 0.983 |
KL= 1.56 L. mg-1 | |||
Freundlich | KF=31.13 (mg. g-1) (L. mg-1)0.458 | 0.985 | |
n= 3.75 (g. L-1) |
Langmuir isotherm
Langmuir model [39] is built on many assumptions; the adsorbent has a uniform surface and its adsorptive sites are equivalent; and the molecules of adsorbates do not interact with themselves therefore a monolayer is made [42]. Based on this theory, Langmuir empirically derived an equation which correlates between the numbers of active adsorption sites on the surface of adsorbent and the concentration of adsorbate. This correlation is called Langmuir Equation which is expressed as follow:
\begin{equation} q_{e}=\frac{q_{m}K_{L}C_{E}}{\left ( 1+K_{L}C_{e} \right )} \tag{8} \end{equation}
Whereas the linear form of Langmuir model may be written as below:
\begin{equation} \frac{C_{e}}{q_{e}}=\frac{1}{q_{m}}C_{e}+\frac{1}{k_{L}q_{m}} \tag{9} \end{equation}
Where: qm: Langmuir maximum loading capacity (mg. g-1), kL : Langmuir constant related to the energy of adsorption and affinity of binding sites (L. mg-1), Ce: the equilibrium concentration of dye in solution (mg. L-1) qe: amount of dye sorbed at equilibrium per unit mass of sorbent (mg. g-1). For obtaining the qm and kL from the experimental data, Ce/qe can be plotted against Ce yielding linear relationship with slop (1/qm) and intercept (1/kLqm). The values of these parameters as well as the parameters of the Freundlich model were found for UiO-66-NH4 and UiO-66-Ce and listed in Table 4.
According to the Langmuir model Table 4 demonstrates that, the maximum sorption capacity of MO (qm) on the UiO-66-NH4 and UiO-66-Ce was 67.56 and 208 mg. g-1 respectively. The maximum adsorption capacity was a hugely deviated away from the experimental data in UiO-66-Ce while that was in a good agreement in the UiO-66-NH4. In addition, KL values in modified UiO-66 was much higher than that in UiO-66-Ce, it was 1.56 and 0.256 respectively. That indicates to strong interaction is likely to happen between MO and the active site on the surface of modified UiO-66 whereas this interaction is likely to be very weak in UiO-66-Ce. Furthermore, according to the Freundlich model, Table 4 displays that KF and n were 40.8 and 1.18; and 31.13 and 3.75 in UiO-66-Ce and modified UiO-66 respectively. That indicates that the adsorption rate of MO toward the surface of UiO-66-Ce was higher than that toward modified UiO-66. Also, UiO-66-Ce has a lower deviation from the linearity.
Adsorbent | qm (mg. g-1) | Reference |
Modified UiO-66 | 62.5 | This study |
UiO-66-Ce | 71.5 | This study |
Hypercrosslinked polymeric adsorbent | 70.9 | [43] |
Metal Organic Framework (MIL-53) | 57.9 | [14] |
Multiwalled carbon nanotubes | 52.86 | [37] |
Chitosan | 34.83 | [44] |
modified montmorillonite | 24.00 | [45] |
Banana peel | 21 | [46] |
Orange peel | 20.5 | [46] |
Modified ultrafine coal powder | 18.52 | [47] |
Graphene oxide | 16.83 | [7] |
Chitosan/kaolin/γ-Fe2O3 | 14.2 | [48] |
Bottom ash | 13.35 | [2] |
De-oiled soya | 13.46 | [2] |
Activated carbon | 11.2 | [14] |
Activated alumina | 9.8 | [49] |
Diaminoethanesporopollenin biopolymer | 4.7 | [50] |
Bottom ash | 3.62 | [2] |

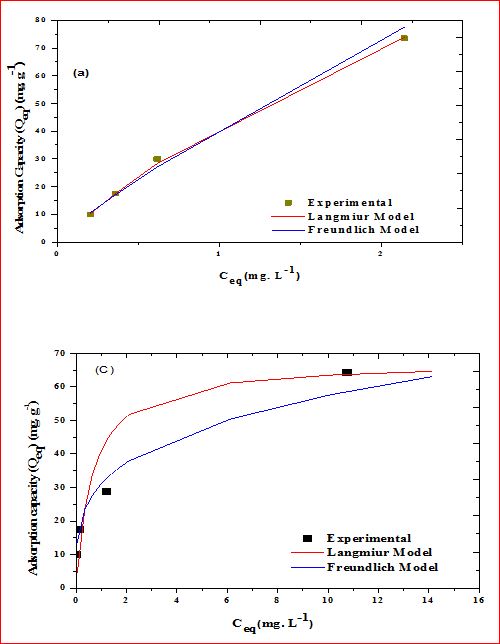

In Figure 4 displays that, adsorption of MO on UiO-66-Ce and UiO-66-NH4 was well fitted by Langmuir model. Our results are distinguished among other results from different researches as listed in Table 5 showing a good performance of modified UiO-66 samples.

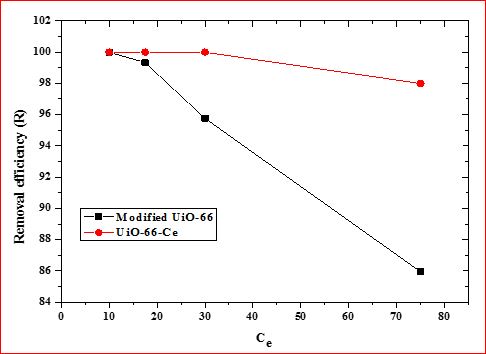

Figure 5 demonstrates that the removal efficiencies of MO on the modified UiO-66 and UiO-66-Ce was the highest (99%) at the lowest initial concentration used then it is slightly decreased on UiO-66-Ce with increasing the initial concentration. However, the removal efficiency was sharply dropped on modified UiO-66.
The expression of essential characteristics of the Langmuir isotherm is very important indication for the favourability of adsorption process which may be written based on a dimensionless constant separation factor (RL) as follow:
\begin{equation} R_{L}=\frac{1}{\left ( 1+K_{L}C_{0} \right )} \tag{10} \end{equation}
Where: C0: the initial concentration of adsorbate (mg. L-1), kL: (L. mg-1) is Langmuir constant. Type of the isotherm can be predicted from the RL value indicating the favourability of the process of adsorption. It may be equal to zero, one, greater than one, or greater than zero and less than one proofing that the adsorption process is either irreversible, linear, unfavourable, or favourable, respectively. Figure 6 shows that all values of RL are between 0 < RL < 1 confirming that the normal adsorption of MO on UiO-66 samples are favourable. RL approached to zero at high concentration indicated that a further increasing in initial concentrations might lead to irreversible adsorption due to enhancing the attraction force with increasing the initial concentrations [22].
Conclusion
Three adsorbents (UiO-66-Ce, UiO-66-Ca and UiO-66-NH4) were used for removal acidic dye (Methyl orange (MO)). They were synthesised in single pot solvothermal methods. The textural properties were improved and enhanced. The batch adsorption experiment was achieved at constant temperature to remove MO from the wastewater using activated modified UiO-66 samples. The experimental data were fitted for kinetic adsorption and adsorption equilibrium isotherms. In regards to the kinetic adsorption, it was confirmed that the pseudo-second-order kinetics was dominated, indicating that the MO uptake on modified UiO-66 samples is controlled by the chemisorption processes. However, the adsorption isotherm of MO on all modified UiO-66 samples was in accordance with the Langmuir isotherm model verifying the adsorption of MO on adsorbents is monolayer adsorption and the adsorbent s are structurally homogeneous. Moreover, UiO-66- NH4 was the best adsorbent for MO removal at highest maximum adsorption capacity of 68.49 mg. g-1. These modified UiO-66 samples can be selected as candidates for industrial application for removal other contaminants from wastewater.
